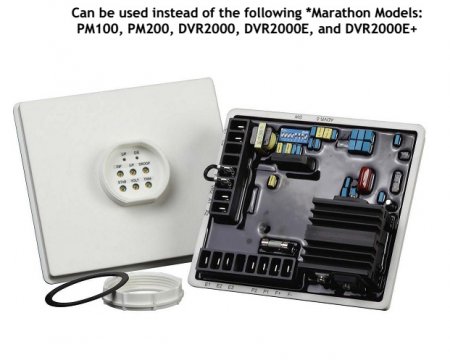

AVR for Marathon DVR2000 and PM500 Series, Hybrid
AVR for Marathon DVR2000 and PM500 Series, Hybrid

AVR for Marathon DVR2000 and PM500 Series, Hybrid

In Stock
Part #: ADVR2000
  • Quantity in Stock: 10

$575.96

1192
Qty :
Click here for manual.Our model ADVR2000 is a Hybrid Analog / Digital AVR that is easy to Set-Up and Program.Note:  We highly recommend that you replace the capacitor along with this...

Click here for manual.

Our model ADVR2000 is a Hybrid Analog / Digital AVR that is easy to Set-Up and Program.

Note:  We highly recommend that you replace the capacitor along with this voltage regulator.

This replacement for Marathon's PM500 also can replace several others as shown as long as you do not need the digital set-up features or compensation for Power Factor correction or other special functions found in the DVR series.

Comes with metal adapter plate to match bolt pattern of the DVR2000 series. (adapter not shown)

Built to substitute several Analog & Digital Regulators used with *Marathon PMG type Generators.


Can be used instead of the following *Marathon Regulator Models:

Also replaces Magnum part # 36364 and Generac 000000000000036364.

1. SPECIFICATIONS:

Sensing Input:E1, E2, E3
Voltage  200~ 600VAC, 60Hz
DIP Switch SW1, 2 Selectable:
175 ~ 280VAC @ 220VAC
330 ~ 515VAC @ 380/440VAC
420 ~ 660VAC @ 480/600VAC
Frequency  Single or 3 phase input
DIP Switch SW3 Selectable
Power Input: P1 & P2 Voltage 80-260Vac, 40-300Hz.
Single phase Output Voltage: 85VDC @ 110VAC input  / 170VDC @ 220VAC input
Current:  Continuous 5A Max. - Intermittent 10A for 60 sec

Voltage Regulation:
< ± 0.5% ( with 4% engine governing )
Voltage Build-up: Residual voltage at AVR terminal > 5 VAC @ 25Hz

C change in AVR ambient
External Volts Adjustment
5% with 500ohm 1 watt trimmer
10% with 1000ohm 1 watt trimmer
Excitation Resistance: 9 ohms minimum
Max. Power Dissipation: 12 watts
Current Compensation:1 or 5 A  >  0.2 VA  (DIP Switch  SW 3  Selectable) (C1,C2)
Max.  ± 7 %  @  P.F.  ± 0 . 7
Analogue Voltage Input: 0~1 5 %  @  0~1 0 VDC  o r  0 ~  ± 5 VDC
Frequency Knee Point: 60Hz Factory setting is 57 Hz  /  50Hz Factory setting is 47 Hz
Response Time: <1 Cycle
Dimensions: 150mm L * 135mm W * 55.5mm H
Weight: 470g ± 2% (+Mounting Bracket if used)


*Not a product of Marathon Electric
