TG350 TOUGH Series Digital Genset Control, Dynagen

The TOUGH Series® controllers are designed to provide complete control, protection, and engine instrumentation for both standard and electronic CAN Bus engines as well as metering for generator applications.

All modules in this series are easily configured as either engine controllers or as generator controllers using either the front panel buttons or our PC configurator software.

TOUGH series controllers are ideally suited for severe duty applications where reliability is critical such as mobile or stationary engine equipment and generators.

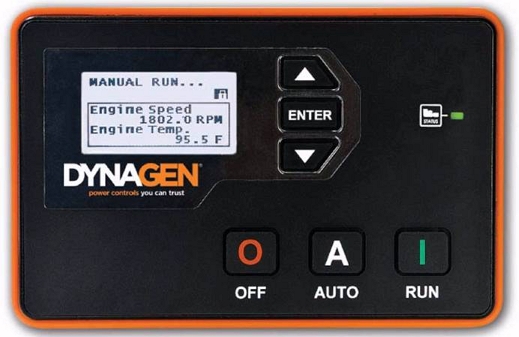

TG350

The TG350 is the entry level option of the TOUGH Series and provides the following displays: Oil Pressure, Engine Temperature, Fuel Level, Oil Level, Engine Hours, RPM and Battery Volatage as well as J1939 Diagnostic Trouble Codes and a 150 Event Log. Two customer-defined sensor parameters for temperature, pressure, voltage or levels can also be configured.  For generator applications, the TG350 provides a display for 3-Phase  AC voltage and Frequency.  For applications requiring 3-Phase display of AC current, the TG410 model is recommended.

Downloads


Datasheet:    TOUGH Series™ TG350

Accessories:   TOUGH Series™ Accessories

User Manual:
TOUGH Series™ TG350

DynaGen™ Diehl Series 884

Wiring Configuration:

TG350 Wiring Configuration with RelayPak

TOUGH Series Harness Guide

Software:   RapidCore Installer V2.21.0.14

DynaGen RapidCore User Manual - English

Firmware Updates:   TG350 1.97.08

Compliance Document:

TG TE cULus Certificate Of Compliance

RP100 cULus Certificate Of Compliance

Accessories for the TG350:

Are you using the relay pack? If so, order DWG1475 and RP100-VM. If you have a 24V battery system, just add (3) RLY0054 relays

If you do NOT need the relay pack, you'll need harness DWG1476 instead

For displaying AC volts or using the generator output to sense speed, use harness DWG1479

If the engine is electronic (CANBUS/J1939 capable), or you're using a magnetic pickup for speed sensing, use harness DWG1522

If you need more than 3 switched inputs and 3 switched outputs or 3 senors, add harness DWG1477

If wanting the enclosure order ENC0084 11.5x11.5x8.5" or ENC0080 8x8x4"

1/8" Oil pressure sender, order either ACC0108 or ACC0108-A.

1/8" Temp Sender order 02022-00, 1/4" order 02023-00 or VDO Brand 323-420, 3/8" order 02024-00 or VDO Brand 323-421, 1/2" order 02025-00 or VDO Brand 323-419      (Note: If ordering the VDO brand you will need to make an adjustment in the settings to select VDO instead of the default Datcon)

Optional Emergency Stop Switch - for 5A-10A, order ACC75105-2NC. For up to 20A, order ACC87941.

For 2 pole, 30A Fuse holder, order AFB01G2P.

For 3 pole, 30A Fuse holder, order AFB01F3P.

For fuses, order BBS-1.

For DIN Rail order DINRAIL-8IN.
