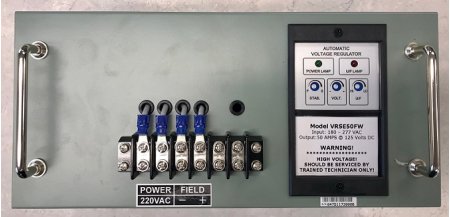

VRSE50FW Voltage Regulator, 50 amp 125VDC Static AVR [VRSE50FW] :

MY ACCOUNT

Manage Account Order History Sign out

717.274.9396

My Account

My Wishlist

Item

Qty

Unit Price

Your cart is empty.

717.274.9396

My Account

My Wishlist

In Stock

Part #: VRSE50FW

Qty :

Full Wave output AVR is rated 125VDC @ 50 amps with 208 - 240V input. Input Voltage 170~265 VAC 1 phase 2 wire Frequency 50/60 Hz selectable ...

Full Wave output AVR is rated 125VDC @ 50 amps with 208 - 240V input.
Input Voltage 170~265 VAC 1 phase 2 wire
Frequency 50/60 Hz selectable
Output Max. 180 VDC @ 220 VAC input
Current Continuous 45A, Intermittent 60A for 10 sec.
Field Resistance Min. 1.5 Ohms
Voltage Regulation< ±1% (with 4% engine governing)
Voltage Build-up Residual volts at AVR terminal > 5 VAC (25 Hz)
External Volts Adjustment ±20%
Under Frequency Protection 60 Hz system presets knee point at 55 Hz, 50 Hz system presets knee point at 45 Hz
Operating Temperature: -40~60 °C
Dimensions: 330.0 (L) x 190.0 (W) x 180.0 (H) mm
Weight 5.2 Kg ±2%
