Tough Series - For engines or generators

All modules in this series are easily configured as either engine controllers or as generator controllers using either the front panel buttons or our PC configurator software.

TOUGH series controllers are ideally suited for severe duty applications where reliability is critical such as mobile or stationary engine equipment and generators.

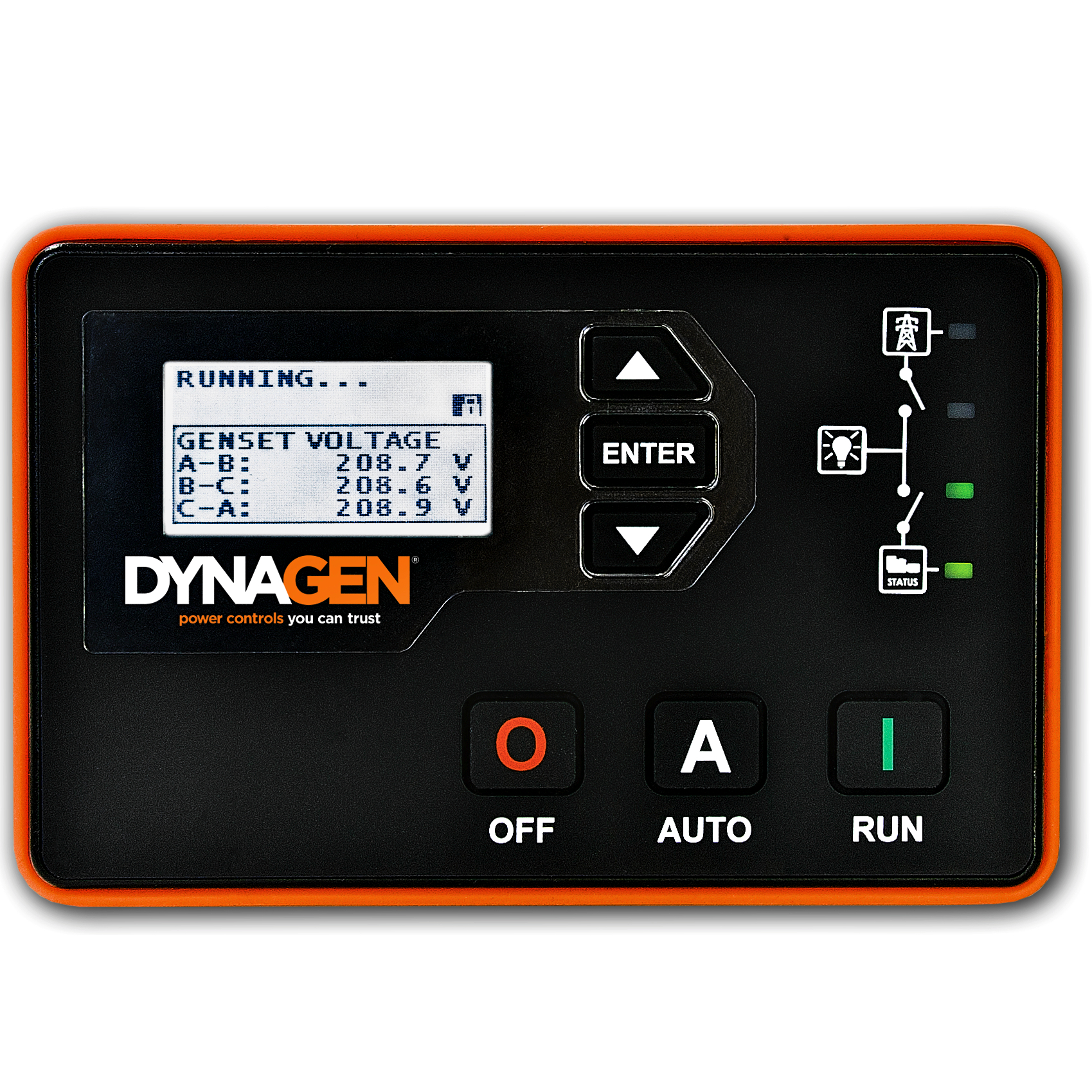

TG350AMF

Auto Mains Failure

The TG350AMF model is targeted at standby generator applications requiring monitoring and displaying of AC voltage of the generator and mains.  The TG350AMF can operate various types of transfer switch contactors to provide a fully integrated standby power system.  The TG350AMF also incorporates all of the functions of the TG350 model by providing displays of Oil Pressure, Engine Temperature, Fuel Level, Oil Level, Engine Hours, RPM and Battery Voltage as well as J1939 Diagnostic Trouble Codes with a 150 Event Log.  Two customer-defined sensor paramenters for temperature, pressue, voltage or levels can also be configured.  For applications requiring 3-Phase dispay of AC current, the TG410 model is recommended.

Accessories for the TG350AMF:

Are you using the relay pack? If so, order DWG1475 and RP-100

If you do NOT need the relay pack, you'll need harness DWG1476

For displaying AC volts or using the generator output to sense speed, use harness DWG1479

If the engine is electronic (CANBUS/J1939 capable), or you're using a magnetic pickup for speed sensing or you're needing Modbus capabilities (such as a RA400 or Netbiter), use harness DWG1522

If you need more than 3 switched inputs and 3 switched outputs or 3 senors, use harness DWG1477

If wanting the enclosure order ENC0084

There are currently no product reviews.


  • Part #: TG350AMF
  • Manufactured by: Cattron
